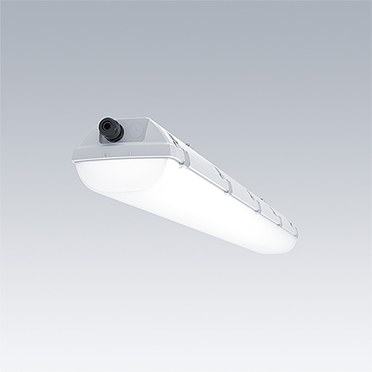

XETARO is a Category 3 ATEX luminaire for Zone 2/22, designed for hazardous environments with explosion risks.
- For use in environments where there is a risk of explosion of gases, dusts and flammable vapours.
- Suitable for Zone 2 (gases) and Zone 22 (dusts) — designed for occasional or short-term presence in explosive atmospheres.
- Resistant to water, dust, dirt and impact: This robust luminaire is resistant to the elements, with high IP66 and IK10 rating.
- Emergency and Dimming options available.
- Accessories include a metal grid to protect XETARO against mechanical damage and side bracket.
Material/Ausfertigung
Body: grey PC (high mechanical resistance, UV stability, RAL 7035)
Diffuser: translucent PC (high mechanical resistance, UV stability)
Reflector: steel sheet, white (RAL 9003)
Clips: stainless steel + polyamide
Sealing: polyurethane (PUR), foam-filled base groove
Installation/Montage
Approved for indoor use or in canopied outdoor areas. Suitable for ceiling and wall mounting (both vertically and horizontally).
Suitable for direct surface. Quick-fix brackets supplied for surface mounting and chain suspension:
Quick release stainless steel clips with anti tamper feature.
Connection: screwless five-pole terminal block
Cable glands: M20X1,5, ATEX thread
Spezifikation
To specify state:
A catergory 3 (Zone 2/22) ATEX IP66 LED moisture proof luminaire: protection against dust and powerful jets of water. Electronic, fixed output or DALI dimmable control gear. Class I electrical. Medium-beam (MB) light distribution 4000K; CRI>80; lifetime [email protected] hours. High efficiency up to 157 lm/W. Dimensions: 1272 x 145 x 100 mm ( 4.400 and 6.400 lm and Weight: 3,3 kg) or 1572 x 145 x 100 mm (5.500, 8.000 and 11000 lm and Weight: 4,2 kg). Nominal power: from 31W to 71W. Chromaticity tolerance between multiple luminaires of up to 3 MacAdam ellipses.Suitable for use in Zone 2 and 22 hazardous areas according to EN/IEC 60079-0:2018, EN/IEC 60079-15:2017 and EN 60079-31:2014 (Ex II 3G Ex nR IIC T6 Gc/ II 3D Ex tc IIIC T70°CDc).
As Thorn XETARO
