Voyager Star
Safety superstar with high performance, flexibility and sustainability.
- Die Voyager Star ist für ein breites Spektrum an Anwendungen im Innenbereich geeignet, darunter Büro, Bildung, Handel und mehr

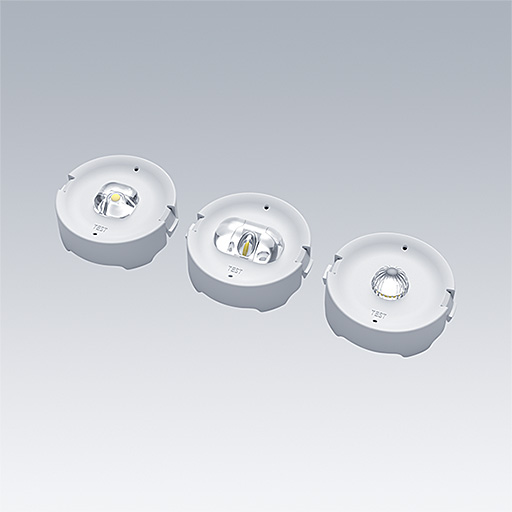

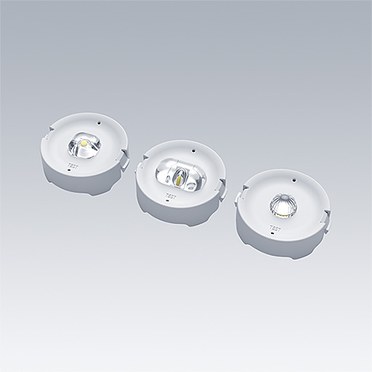

- Dank ihrer drei Spezialoptiken - Antipanik, Fluchtweg und Spot (engstrahlend) -, die mit jeder Leuchte mitgeliefert werden, ist es möglich, vor Ort zu entscheiden, welche Optik für den konkreten Leuchtenstandort die beste ist
- Dank der leistungsstarken Optiken, durch die sich sehr große Abstandswerte erzielen lassen, können im Vergleich zu anderen Lösungen Leuchten eingespart und die Gesamtprojektkosten gesenkt werden
- Unsere drahtlosen basicDIM Varianten ergänzen das autarke Portfolio; so werden Ihre Renovierungsprojekte zu einem Kinderspiel
- Dank der riesigen Auswahl an verschiedenen zentralen Batteriesystemen sowie DALI oder Powerline-Kommunikation eignet sich die Voyager Star sowohl für große als auch kleine Projekte
Material/Ausfertigung
Surface-mounted and Recessed versions:
Housing: white or black polycarbonate (PC)
Lenses: transparent PMMA
Contus version:
Housing: Roll-formed sheet steel with white or black polyester coating
Lenses: transparent PMMA
Installation/Montage
Depending on the location, the installer can select from a choice of three supplied optics (ESC, ANT, Spot) to best suit the lighting requirements of the space. A tool-free click-in system provides quick and easy installation.

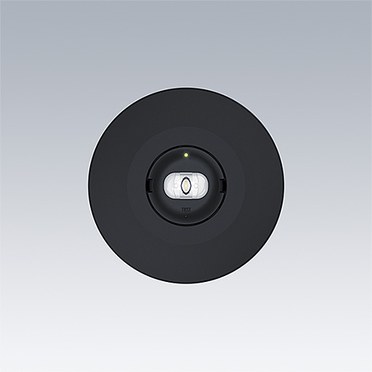

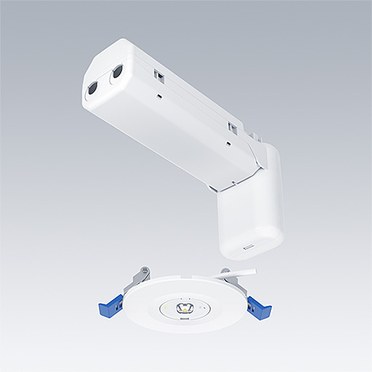

Voyager Star Recessed can be installed directly into a wide range of ceiling types, with a thickness between 1 mm and 25 mm. The luminaire has a discreet cut-out diameter of only 68 mm. Loop-in, Loop-out is possible for cables with wires up to 2.5 mm².

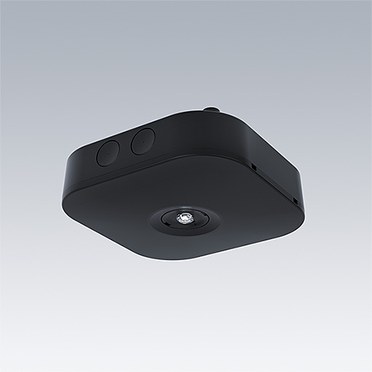

The Surface Mounted Voyager Star is delivered with a double-back and double-sided cable entry. Loop-in, Loop-out is possible for cables with wires up to 2.5 mm².

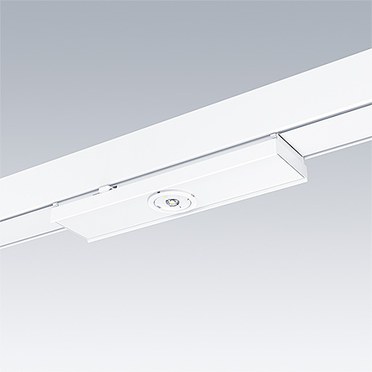

Tool-free installation of the Voyager Star Contus models is by a simple ‘click-in’ system.
- Neues Produkt
▼ Voyager Star Recessed white
Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
---|---|---|---|---|---|---|---|---|---|
VOYAGER STAR MRCR E1/3 S WH | LED | 0.35 | 96638070 | ||||||
VOYAGER STAR MRCR E1/3T S WH | LED | 0.35 | 96638071 | ||||||
VOYAGER STAR MRCR E3/8 S WH | LED | 0.38 | 96638078 | ||||||
VOYAGER STAR MRCR E3/8T S WH | LED | 0.38 | 96638079 | ||||||
VOYAGER STAR MRCR ECC WH | LED | 0.29 | 96638085 | ||||||
VOYAGER STAR MRCR ECP P WH | LED | 0.29 | 96638083 | ||||||
VOYAGER STAR MRCR ELP P WH | LED | 0.29 | 96638084 |
▼ Voyager Star Recessed black
Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
---|---|---|---|---|---|---|---|---|---|
VOYAGER STAR MRCR E1/3 S BK | LED | 0.35 | 96638074 | ||||||
VOYAGER STAR MRCR E1/3T S BK | LED | 0.35 | 96638075 | ||||||
VOYAGER STAR MRCR E3/8 S BK | LED | 0.38 | 96638086 | ||||||
VOYAGER STAR MRCR E3/8T S BK | LED | 0.38 | 96638087 | ||||||
VOYAGER STAR MRCR ECC BK | LED | 0.29 | 96638093 | ||||||
VOYAGER STAR MRCR ECP P BK | LED | 0.29 | 96638091 | ||||||
VOYAGER STAR MRCR ELP P BK | LED | 0.29 | 96638092 |
▼ Voyager Star Surface white
Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
---|---|---|---|---|---|---|---|---|---|
VOYAGER STAR MSC E1/3 S WH | LED | 0.46 | 96638094 | ||||||
VOYAGER STAR MSC E1/3T S WH | LED | 0.46 | 96638095 | ||||||
VOYAGER STAR MSC E3/8 S WH | LED | 0.51 | 96638102 | ||||||
VOYAGER STAR MSC E3/8T S WH | LED | 0.51 | 96638103 | ||||||
VOYAGER STAR MSC ECC WH | LED | 0.41 | 96638109 | ||||||
VOYAGER STAR MSC ECP P WH | LED | 0.41 | 96638107 | ||||||
VOYAGER STAR MSC ELP P WH | LED | 0.41 | 96638108 |
▼ Voyager Star Surface black
Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
---|---|---|---|---|---|---|---|---|---|
VOYAGER STAR MSC E1/3 S BK | LED | 0.46 | 96638098 | ||||||
VOYAGER STAR MSC E1/3T S BK | LED | 0.46 | 96638099 | ||||||
VOYAGER STAR MSC E3/8 S BK | LED | 0.51 | 96638110 | ||||||
VOYAGER STAR MSC E3/8T S BK | LED | 0.51 | 96638111 | ||||||
VOYAGER STAR MSC ECC BK | LED | 0.41 | 96638117 | ||||||
VOYAGER STAR MSC ECP P BK | LED | 0.41 | 96638115 | ||||||
VOYAGER STAR MSC ELP P BK | LED | 0.41 | 96638116 |
▼ Voyager Star previous generation
Beschreibung | Typ | Gewicht (Kg) | Artikelnummer | ||||||
---|---|---|---|---|---|---|---|---|---|
RESCPRO & VOYStar BP GRID | 0.55 | 22169079 | |||||||
RESCPRO & VOYStar MRCR/MRWR CCS | 0.31 | 22170982 | |||||||
RESCPRO & VOYStar MRCR/MRWR QC WH | 0.03 | 22166854 | |||||||
RESCPRO & VOYStar MSC BESA | 0.14 | 22166853 | |||||||
VOYAGER STAR MRCR ANT E3D WH | LED | 0.55 | 96637542 | ||||||
VOYAGER STAR MRCR ESC E3D WH | LED | 0.55 | 96637540 | ||||||
VOYAGER STAR MSC ESC E3D WH | LED | 0.70 | 96637546 | ||||||
VOYAGER STAR MSC SPOT E3D WH | LED | 0.74 | 96637550 | ||||||
VOYAGER STAR P MRCR ANT ECD WH | 0.45 | 96633208 | |||||||
VOYAGER STAR P MRCR ESC ECD WH | 0.45 | 96633227 | |||||||
VOYAGER STAR P MRCR SPOT ECD WH | 0.45 | 96633228 | |||||||
VOYAGER STAR P MSC ANT ECD WH | 0.65 | 96633207 | |||||||
VOYAGER STAR P MSC ESC ECD WH | 0.65 | 96633225 | |||||||
VOYAGER STAR P MSC SPOT ECD WH | 0.65 | 96633226 |
▼ Voyager Star Zubehör
Beschreibung | Gewicht (Kg) | Artikelnummer | |||||||
---|---|---|---|---|---|---|---|---|---|
RESCPRO & VOYStar MRCR/MRWR QC SR | 0.03 | 22166855 | |||||||
RESCPRO & VOYStar MS-BEAM IP40 | 1.24 | 22170991 |
▼ Voyager Star Ersatzteile
Beschreibung | Gewicht (Kg) | Artikelnummer | |||||||
---|---|---|---|---|---|---|---|---|---|
ACCU NiMH 2,4V 2,2Ah Cs 2 SBS | 1.00 | 59004661 | |||||||
ACCU NiMH 2,4V 4,0Ah LA 2 SBS CON3 75 | 0.16 | 59009424 | |||||||
ACCU NIMH 2.4V 4Ah 7/5 2 SBS CON3 165mm | 0.20 | 59004666 | |||||||
ACCU NIMH 3.6V 2.2Ah Cs 3 SBS 135/160mm | 0.20 | 59010372 | |||||||
EMpower PROset E1D 1/340mA | 0.07 | 59010609 | |||||||
EMpower PROset E3D 1/340mA | 0.07 | 59010610 | |||||||
EMpower PROset E3D 1/420mA | 65.00 | 59010458 | |||||||
EMpower PROset ECD | 0.07 | 59009272 | |||||||
EMpower PROset ECD 1/550mA | 0.07 | 59011015 | |||||||
EMpower PROset ECP | 0.07 | 59009273 | |||||||
EMpower PROset ECP 1/550mA | 0.07 | 59011016 | |||||||
EMpower PROset ExD | 0.07 | 59009271 | |||||||
EMpower VOYAGER Star ECC 1/550mA | 0.07 | 59010854 | |||||||
EMpower VOYAGER Star ECS 1/550mA | 0.07 | 59010853 | |||||||
EMpowerLED E3D 1/350mA | 0.07 | 59012020 | |||||||
VOYAGER STAR ANTIPANIC LENSES | 0.04 | 59007293 | |||||||
VOYAGER STAR ESCAPE LENSES | 0.04 | 59007292 | |||||||
VOYAGER STAR SPOT LENSES | 0.06 | 59008194 |
